Frontset Plus Aluminum Window Wall System

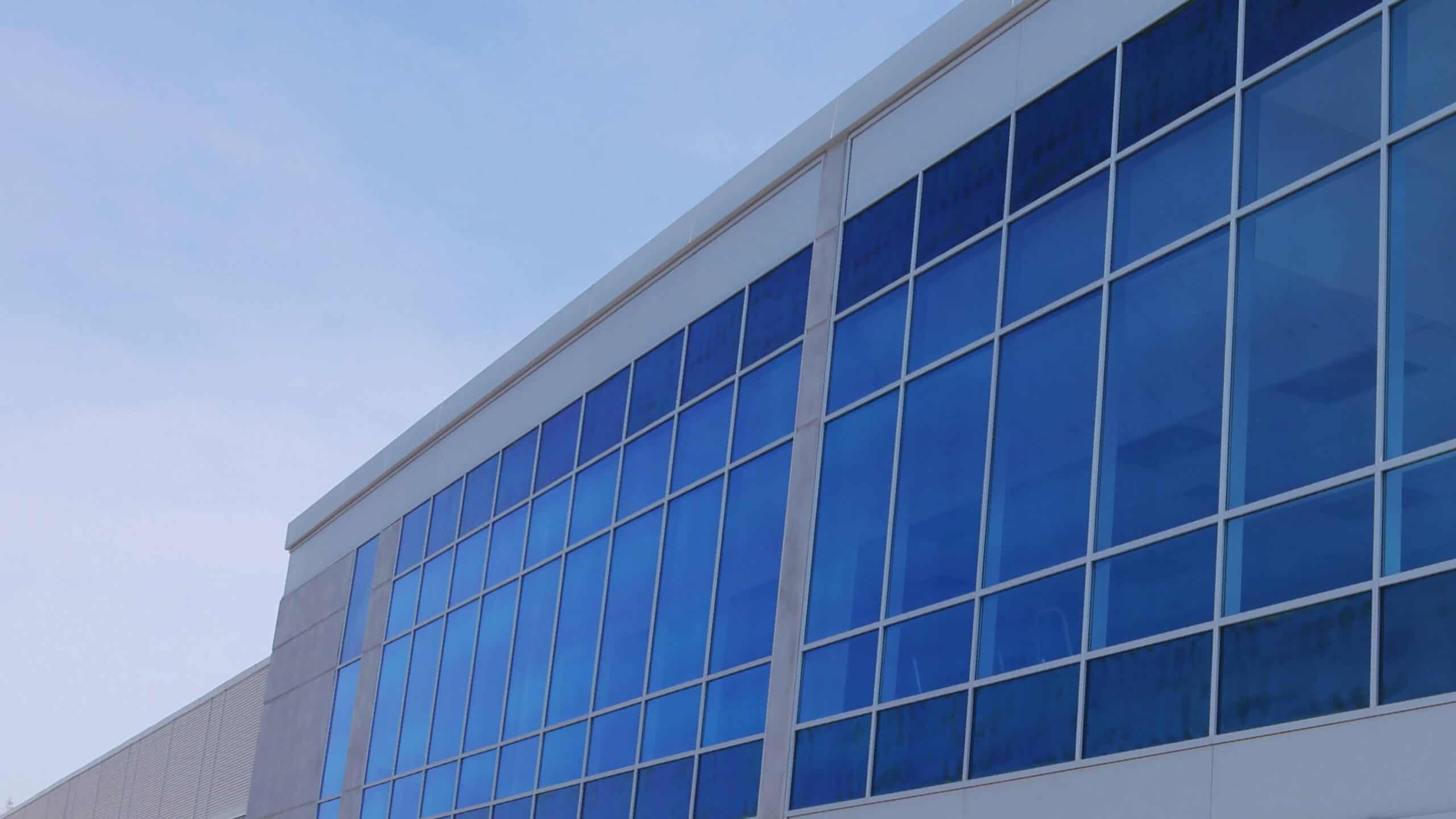

exterior of new hights building with frontset plus window wall

Frontset Plus Aluminum Window Wall System

Introducing Frontset Plus, Aldora's new impact-tested larger storefront window wall system. Our latest Aldora innovation, the Frontset Plus FS-300 Series, delivers bold architecture vision and high-performance demands.

INDUSTRY-LEADING SIZES

Frontset Plus supports openings up to 168 inches(14 feet), among the largest available in the market today.

TESTED FOR PERFORMANCE

Designed to meet stringent impact requirements, this window wall system delivers both resilience and aesthetic flexibility, making it ideal for commercial and residential applications.

ARCHITECTURAL FREEDOM

Specifically designed for coastal and hurricane-prone regions, the patent-pending FS-300 Frontset Plus Series window wall system meets rigorous impact and wind-load requirements, achieving optimized design pressure that effectively balance structural integrity with energy efficiency. This advanced framing systems allows for an extra-large storefront glass panel size - a singular offering in today's market and unmatched by any other competitors.

Request CAD Drawing

Request CAD Drawing

  • This field is for validation purposes and should be left unchanged.

Features

Options & Add-Ons

  • 1.50” x 7.50” profile plus ¾" front set at each side (total: 3.25”)
  • Laminated (9/16”)
  • Maximum multiple panel size of 76” x 168”
  • High design pressures
  • +/- 53.0 psf non-reinforced
  • +/- 65.0 psf reinforced
  • 9.75 psi water resistance
  • Archives 2023 energy code requirements
  • Screw spline
  • Flush spot available for 9/16” glass
  • Anchor clip at the top and bottom of the monumental mullion
  • Easy installation through the frontset horizontal members
  • Regular front spec jambs at each end, anchored or unanchored
  • Prefabricated frames
  • Single or multiple panels

Specifications

Glazing OptionsSGP 9/16" heat-strengthened
Design Loads+65/65
ReinforcedNon-Reinforced
Max Panel 75"x168"
Product ApprovalFBC
TAS 201Passed
TAS 202Passed
TAS 203Passed
ANSI Z97Passed

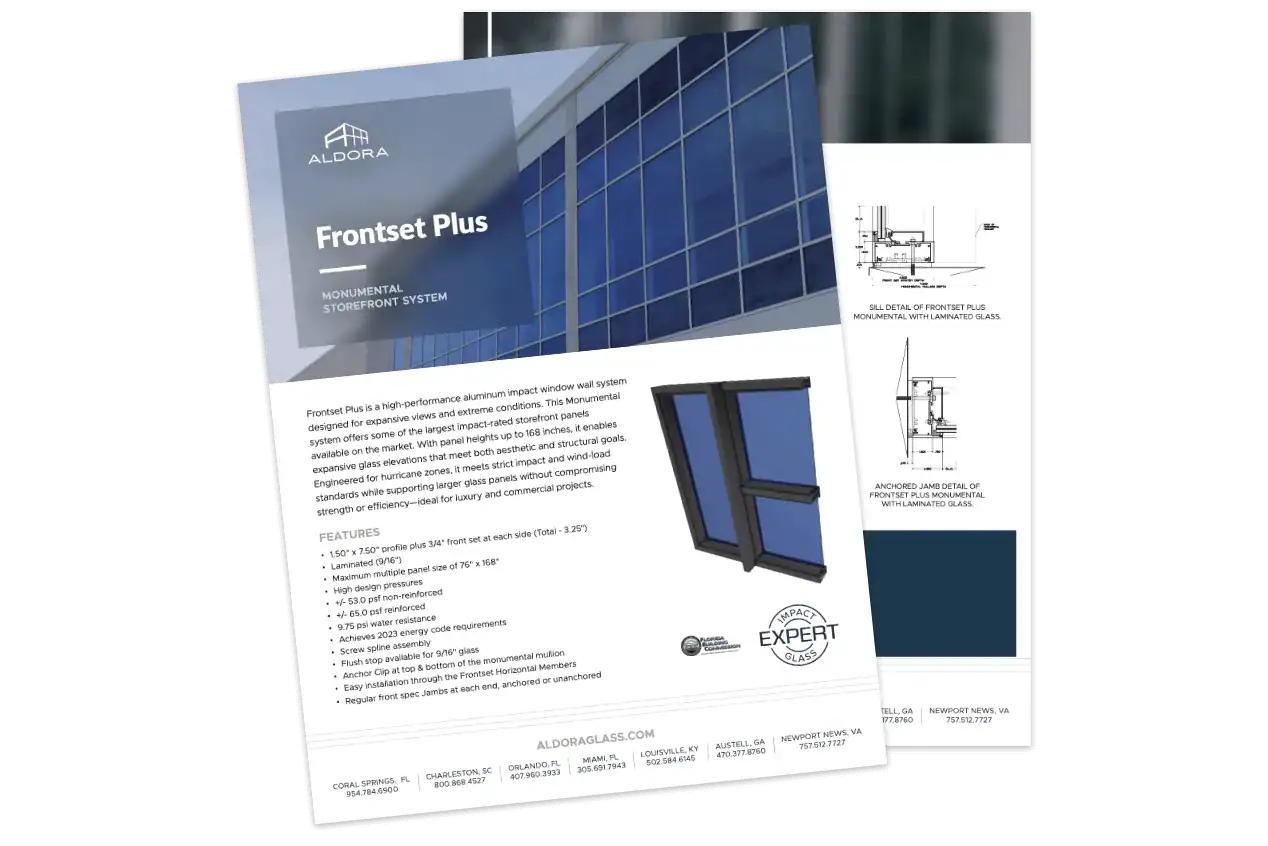

preview of Frontset document

Monumental Aluminum Storefront System

Frontset Plus is a high-performance aluminum impact window wall system designed for expansive views and extreme conditions. This Monumental system offers some of the largest impact-rated storefront panels available on the market. With panel height up to 168 inches, it enables expansive glass elevations that meet both aesthetic and structural goals.

Request a Quote
