Impact Window Wall System

SMI-175 Series

This wet seal, non-weep system stops water and wind cold. The SMI-175 is a heavy walled, hurricane resistant impact window wall system capable of achieving very high wind load demands. And its thick-walled construction allows Aldora to achieve these loads with large glass panels and minimal mullion interruption.

With just 4 extrusions, the system's simplicity in design of allows it to be easily fabricated and its screw spline assembly creates the ability to factory pre-glaze storefront or window panels.

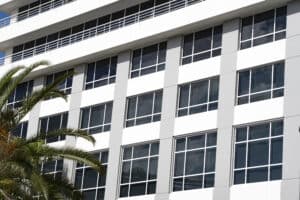

Commercial building entrance, grid SMI-175 impact storefront system windows and doors on multiple levels, curved architectural accents, minimal tropical landscaping in front of building

Features

  • Aluminum alloy 6063-T6
  • Horizontal and vertical framing members 1 3/4" by 4 1/2"
  • Screw spline assembly
  • Stainless steel assembly screws
  • High design pressures
  • Non-weep sealed system

Options & Add-Ons

  • Pre-fabricated frames
  • Pre-glazed frames
  • Stretch-forming for radius shapes
  • Segmented radius

Approval Documentation

Drawing

Request CAD Drawing

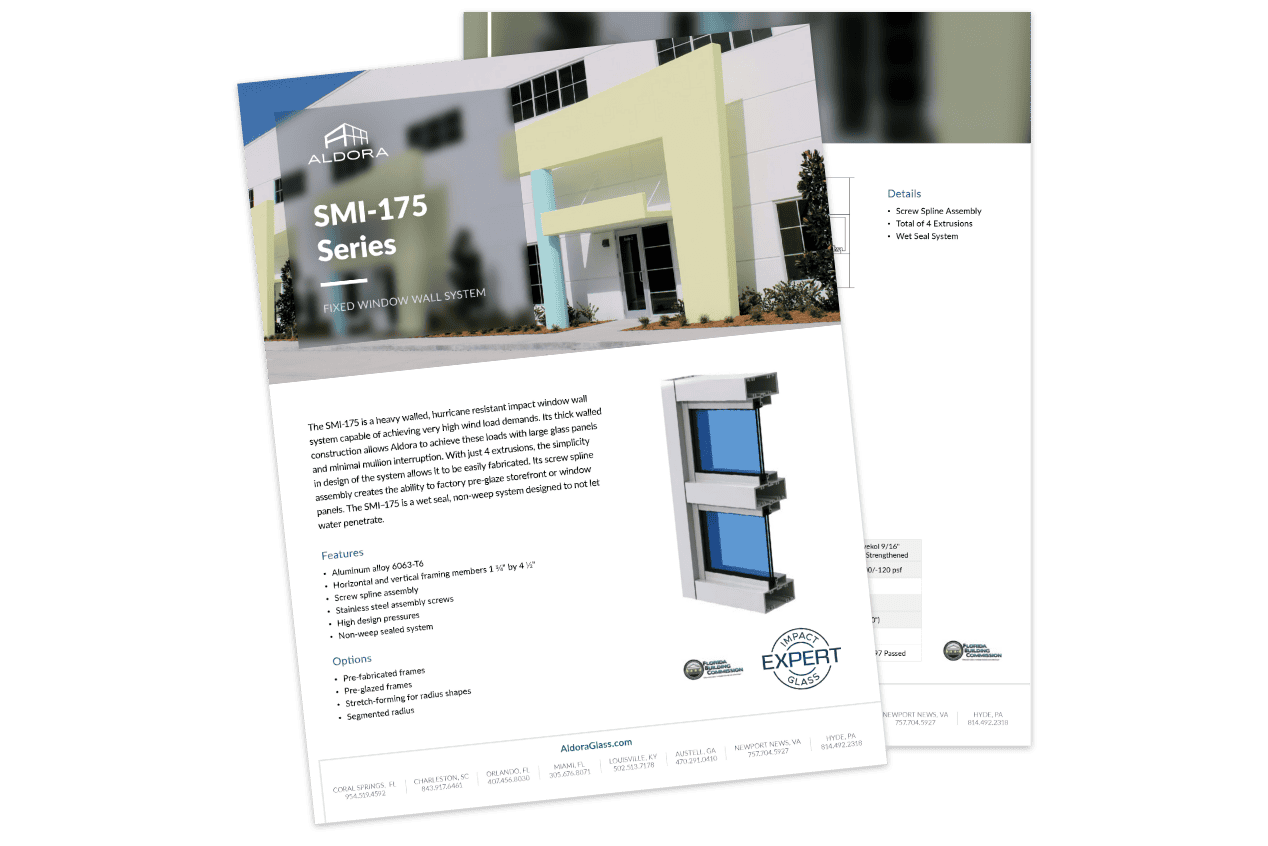

Specifications

#1 Glazing

#2 Glazing

#3 Glazing

#4 Glazing

Glazing OptionsPVB 9/16" Annealed
Design Loads+63/-63 psf
ReinforcedNon-Reinforced
Max Panel 42" x 120"
Product ApprovalMD, NOA, FBC
TAS 201Passed
TAS 202Passed
TAS 203Passed
ANSI Z97Passed
Glazing OptionsUvekol 9/16" Annealed
Design Loads+63/-63 psf
ReinforcedNon-Reinforced
Max Panel 42" x 120"
Product ApprovalMD, NOA, FBC
TAS 201Passed
TAS 202Passed
TAS 203Passed
ANSI Z97Passed
Glazing OptionsPVB 9/16" Heat Strengthened
Design Loads+90/-90 psf
ReinforcedReinforced
Max Panel 60" x 120" (PVB 32" x 120")
Product ApprovalMD, NOA, FBC
TAS 201Passed
TAS 202Passed
TAS 203Passed
ANSI Z97Passed
Glazing OptionsUvekol 9/16" Heat Strengthened
Design Loads+100/-120 psf
ReinforcedReinforced
Max Panel 60" x 120" (PVB 32" x 120")
Product ApprovalMD, NOA, FBC
TAS 201Passed
TAS 202Passed
TAS 203Passed
ANSI Z97Passed
